System Details
Details for System 3
About System 3:
If you're in the Pt. Arena, Ukiah, Willits or Fort Bragg area use C.A.R.L.A. 3, especially if you happen to be in an ocean-going vessel just off the coast.
How the Local PL works in a Dual PL System
This particular repeater in the C.A.R.L.A. System has a Dual PL. If you use the Link PL, your audio is carried over the entire network of repeaters, and you will be able to hear the audio from any and all other repeaters in the network. If you wish to have a local conversation on the repeater just use the Local PL. Your audio will come out only on the local system and you will not hear link audio coming from other repeaters in the network. When you finish your local conversation, the link will automatically re-establish itself in several seconds.
A couple of things to keep in mind:
New! - See this system on our Interactive Coverage Map
If you're in the Pt. Arena, Ukiah, Willits or Fort Bragg area use C.A.R.L.A. 3, especially if you happen to be in an ocean-going vessel just off the coast.
How the Local PL works in a Dual PL System
This particular repeater in the C.A.R.L.A. System has a Dual PL. If you use the Link PL, your audio is carried over the entire network of repeaters, and you will be able to hear the audio from any and all other repeaters in the network. If you wish to have a local conversation on the repeater just use the Local PL. Your audio will come out only on the local system and you will not hear link audio coming from other repeaters in the network. When you finish your local conversation, the link will automatically re-establish itself in several seconds.
A couple of things to keep in mind:
- If you pause for an extended time during your local conversation the link audio may come back. Just key up with the Local PL to mute incoming link traffic and continue your local conversation.
- Remember, if there is a conversation in progress elsewhere on the network, you will not interfere with it if you hold a conversation on the repeater while using the Local PL.
- If you want link audio to come back right away just "kerchunk" the machine you're on with the Link PL.
- There is a different courtesy tone for local traffic and incoming link traffic so you'll be able to distinguish from which direction the audio traffic is originating.
|

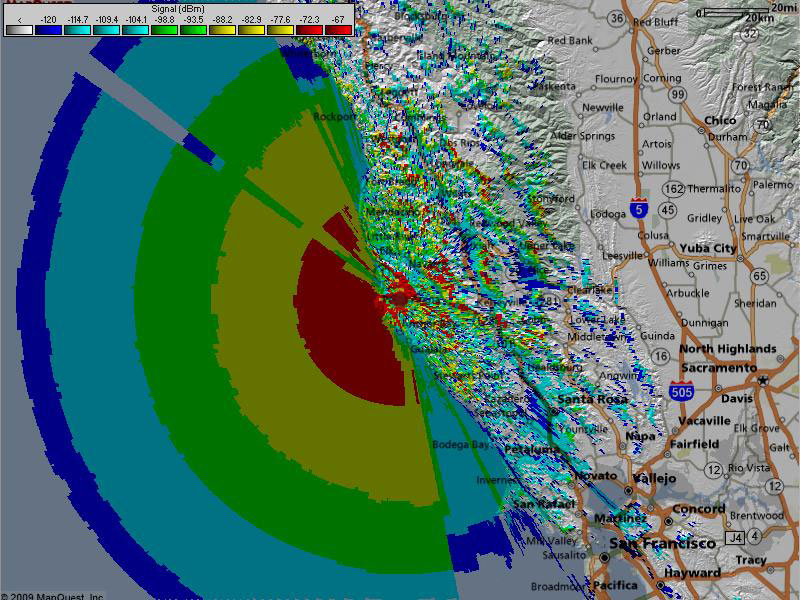

Click below for a larger view:
|
Hardware & Technical Data - Port #1
| Alias: | System 3 |
| Class: | Repeater |
| Type: | RF |
| Equipment: | Motorola RKR1225 at 50w TX power |
| Antenna: | DB Products Omni with 7.5dB of gain |
| Status: | In Service |
Hardware & Technical Data - Port #2
| Alias: | Main Link |
| Class: | Link, connects to System 26 |
| Type: | RF |
| Equipment: | Motorola CDM at 40w TX power |
| Antenna: | Antennex Yagi with 10.2dB of gain |
| Status: | In Service |
Coverage
Located near Point Arena/Manchester and has coverage along parts of Highways 1, 20, 101, 128, and 253. This machine can be heard from from Gualala, Manchester, Point Arena North along Highway 1 to parts of Mendocino, Fort Bragg, Cleone and beyond. Also it offers some coverage along Highway 101 from Willits, Hopland and Ukiah down to Cloverdale and North of Healdsberg near Santa Rosa as well as parts of Clear Lake. It also offers coverage in most of the Anderson Valley including Booneville and Yorkville. C.A.R.L.A. would like to acknowledge Radio Mobile for the use of their program.
