Details for System 13
About System 13:
Planning a trip to the Shasta Lake area? C.A.R.L.A. 13 will keep you company on I-5 and I-99 through Shasta County as well as down on the lake itself. It serves as a hub for the "Shasta Ring" connecting system 13, 20 and the link into the Oregon Connection back to the network. It also has a back-up RF link into the network via C.A.R.L.A. 6's site.
How the Local PL works in a Dual PL System
This particular repeater in the C.A.R.L.A. System has a Dual PL. If you use the Link PL, your audio is carried over the entire network of repeaters, and you will be able to hear the audio from any and all other repeaters in the network. If you wish to have a local conversation on the repeater just use the Local PL. Your audio will come out only on the local system and you will not hear link audio coming from other repeaters in the network. When you finish your local conversation, the link will automatically re-establish itself in several seconds.
A couple of things to keep in mind:
New! - See this system on our Interactive Coverage Map
Planning a trip to the Shasta Lake area? C.A.R.L.A. 13 will keep you company on I-5 and I-99 through Shasta County as well as down on the lake itself. It serves as a hub for the "Shasta Ring" connecting system 13, 20 and the link into the Oregon Connection back to the network. It also has a back-up RF link into the network via C.A.R.L.A. 6's site.
How the Local PL works in a Dual PL System
This particular repeater in the C.A.R.L.A. System has a Dual PL. If you use the Link PL, your audio is carried over the entire network of repeaters, and you will be able to hear the audio from any and all other repeaters in the network. If you wish to have a local conversation on the repeater just use the Local PL. Your audio will come out only on the local system and you will not hear link audio coming from other repeaters in the network. When you finish your local conversation, the link will automatically re-establish itself in several seconds.
A couple of things to keep in mind:
- If you pause for an extended time during your local conversation the link audio may come back. Just key up with the Local PL to mute incoming link traffic and continue your local conversation.
- Remember, if there is a conversation in progress elsewhere on the network, you will not interfere with it if you hold a conversation on the repeater while using the Local PL.
- If you want link audio to come back right away just "kerchunk" the machine you're on with the Link PL.
- There is a different courtesy tone for local traffic and incoming link traffic so you'll be able to distinguish from which direction the audio traffic is originating.
|

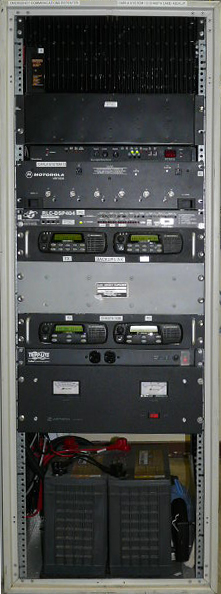

Click below for a larger view:
|
Hardware & Technical Data - Port #1
| Alias: | System 13 |
| Class: | Repeater |
| Type: | RF |
| Equipment: | Motorola MSF-5000 at 40w TX power |
| Antenna: | DB 416 with 9dB of gain |
| Status: | In Service |
Hardware & Technical Data - Port #2
| Alias: | Shasta Backup Link |
| Class: | Backup Link, connects to System 06 |
| Type: | RF |
| Equipment: | CDM 1550 at 20w TX power |
| Antenna: | Scala Yagi with 10dB of gain |
| Status: | In Service |
Hardware & Technical Data - Port #3
| Alias: | OC Link |
| Class: | Dedicated Network Extension |
| Type: | RF |
| Equipment: | CDM 1550 at 20w TX power |
| Antenna: | Antennex Y4063 Yagi with 7dB of gain |
| Status: | In Service |
Hardware & Technical Data - Port #4
| Alias: | Shasta Mini-Hub |
| Class: | Hub |
| Type: | RF |
| Equipment: | CDM 1550 at 20w TX power |
| Antenna: | Antennex Y4063 Yagi with 7dB of gain |
| Status: | In Service |
Hardware & Technical Data - Port #5
| Alias: | Main Link |
| Class: | Link, connects to System 05 |
| Type: | IP |
| Equipment: | RLC DSP-404 |
| Status: | In Service |

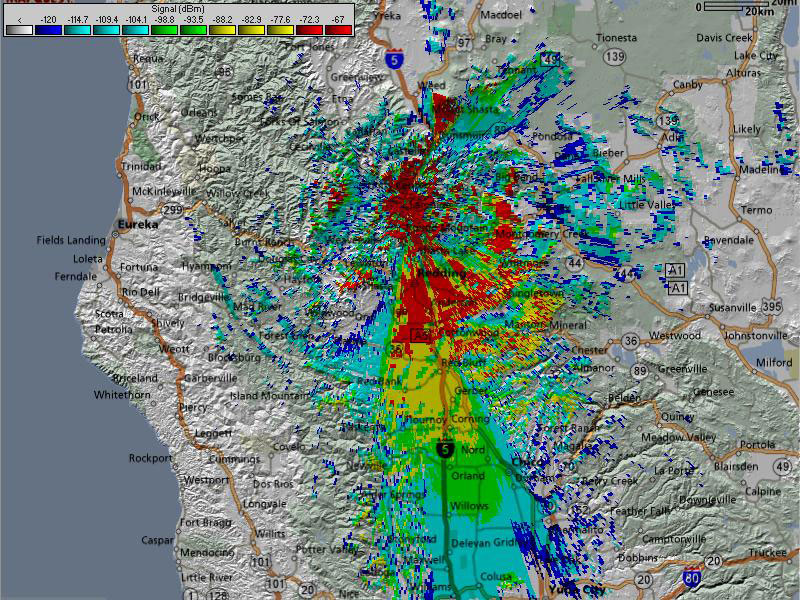

Coverage
Located just north of Lake Shasta, covers the entire lake and surrounding areas. It has coverage from the base of Mt. Shasta to just about Corning on I-5. It also covers east and west of I-5 in the mountainous areas around that part of I-5.C.A.R.L.A. would like to acknowledge Radio Mobile for the use of their program.
