Details for System 14
About System 14:
The C.A.R.L.A. 14 repeater is located near I-80 where US-20 comes in at the Yuba Gap area.
How the Local PL works in a Dual PL System
This particular repeater in the C.A.R.L.A. System has a Dual PL. If you use the Link PL, your audio is carried over the entire network of repeaters, and you will be able to hear the audio from any and all other repeaters in the network. If you wish to have a local conversation on the repeater just use the Local PL. Your audio will come out only on the local system and you will not hear link audio coming from other repeaters in the network. When you finish your local conversation, the link will automatically re-establish itself in several seconds.
A couple of things to keep in mind:
New! - See this system on our Interactive Coverage Map
The C.A.R.L.A. 14 repeater is located near I-80 where US-20 comes in at the Yuba Gap area.
How the Local PL works in a Dual PL System
This particular repeater in the C.A.R.L.A. System has a Dual PL. If you use the Link PL, your audio is carried over the entire network of repeaters, and you will be able to hear the audio from any and all other repeaters in the network. If you wish to have a local conversation on the repeater just use the Local PL. Your audio will come out only on the local system and you will not hear link audio coming from other repeaters in the network. When you finish your local conversation, the link will automatically re-establish itself in several seconds.
A couple of things to keep in mind:
- If you pause for an extended time during your local conversation the link audio may come back. Just key up with the Local PL to mute incoming link traffic and continue your local conversation.
- Remember, if there is a conversation in progress elsewhere on the network, you will not interfere with it if you hold a conversation on the repeater while using the Local PL.
- If you want link audio to come back right away just "kerchunk" the machine you're on with the Link PL.
- There is a different courtesy tone for local traffic and incoming link traffic so you'll be able to distinguish from which direction the audio traffic is originating.
|
Click below for a larger view:
|

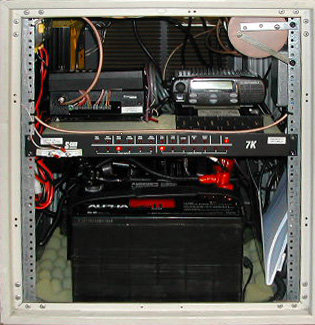

Hardware & Technical Data - Port #1
| Alias: | System 14 |
| Class: | Repeater |
| Type: | RF |
| Equipment: | Motorola RKR-1225 at 25w TX power |
| Antenna: | Super Station Master with 8dB of gain |
| Status: | In Service |
Hardware & Technical Data - Port #2
| Alias: | Main Link |
| Class: | Link, connects to System 16 |
| Type: | RF |
| Equipment: | Motorola CDM at 20w TX power |
| Antenna: | Dual Telewave 6-element Yagi with 13dB of gain |
| Status: | In Service |

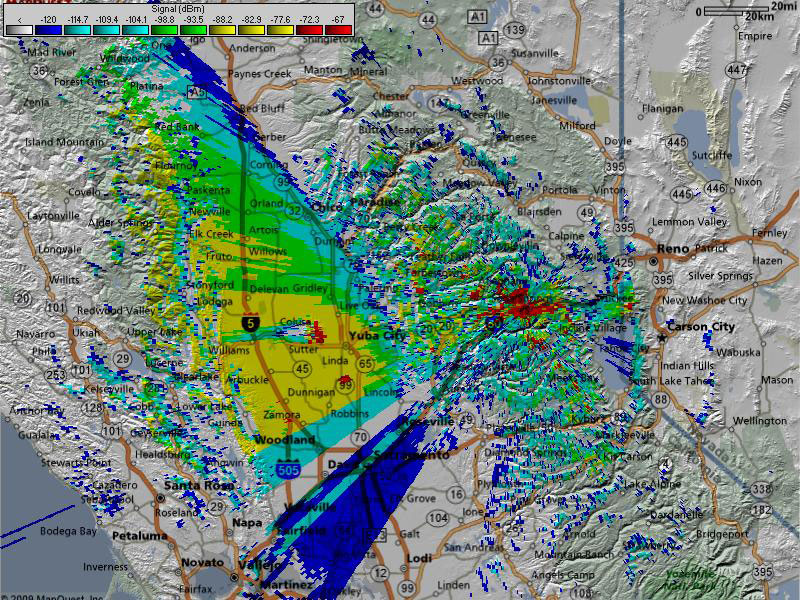

Coverage
Located above Cisco Grove, this machine provides coverage in the I-80 corridor just east of Donner Pass (over the summit towards Truckee) to the 4,500 ft. level on I-80. It also covers the HWY 20 corridor from the I-80 junction out towards Grass Valley, Yuba City, Williams, Willows and Colusa County. This machine can also be heard on I-505 between Vacaville and Dunnigan and up I-5 towards Williams.C.A.R.L.A. would like to acknowledge Radio Mobile for the use of their program.
