System 35: Oakland
Details for System 35
About the System:

CARLA 35 resides along with CARLA 5 (UHF) as well as the primary Echo-
IRLP Node & RoIP link to CARLA 13 which serves as the Shasta Ring Hub.
This is the primary site for the greater San Francisco Bay Area.


Tidbits:

CARLA 35 was previously owned by Roger Spindler, WA6AFT (SK) and
graciously donated to CARLA for integration into our network after it
needed a new home. It has been a excellent replacement due to CARLA 5's
reduced coverage from the PAVE PAWS issue.


System 35: Oakland
K6LNK

Frequency:146.850-
Link PL:162.2
Local PL:103.5
Site Name:East Bay Hills
Elevation:1500'
City:Orinda, CA
Controller:RLC DSP-404
System Config:Permanent Dual PL Link/Local System

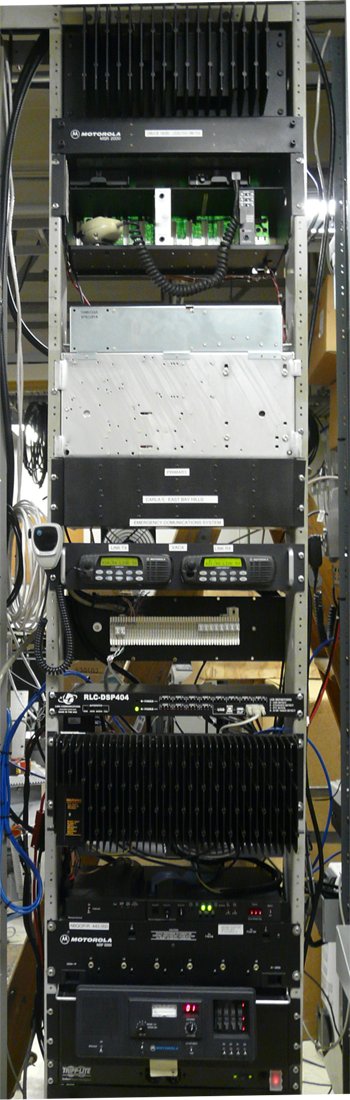

System Equipment Photo
Click the thumbnail below for a larger view



Dual PL & Courtesy Tones
This particular repeater in the C.A.R.L.A. System has a Dual PL. You can use the Link PL to hold a conversation with someone elsewhere on the network, or the Local PL to converse with someone who is on the same repeater as you are.

You can read more about the Dual PL system and the Courtesy Tones that are used on the system.

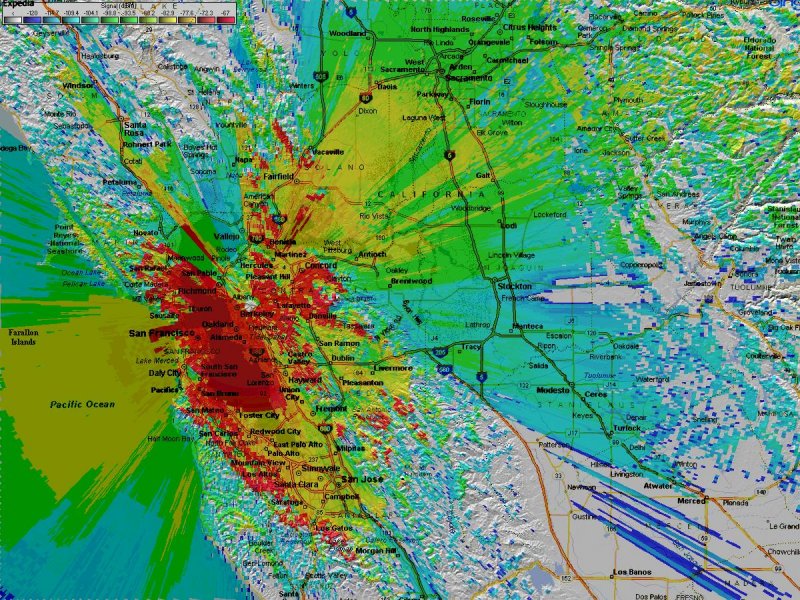

Coverage for System 35
Located in the East Bay hills at around 1,500' elevation at the same
location as CARLA 5 (UHF). This machine has wide area coverage
including most of the greater S.F. Bay Area from Marin County, Sonoma
and Napa Counties. Lafayette, Walnut Creek, Concord, Martinez, Pleasant
Hill, as well as Antioch, Pittsburgh, Bay Point on out Hwy 4 and 12 to
the Stockton area. The system also reaches out along many parts of the
I-80 corridor through Fairfield, Vacaville, Sacramento, and Auburn.
This system essentially has the same coverage that CARLA 5 used to have
prior to the PAVE PAWS power/coverage mitigation efforts.

See this system on our Interactive Coverage Map

Disclaimer: Coverage maps are provided for informational purposes only.
C.A.R.L.A. would like to acknowledge and thank Radio Mobile for the use of their program.

Technical Data for System 35
For the curious amongst us, here are further details about the equipment that makes up this C.A.R.L.A. System. For example, you can see what kind of transceiver we're using for a particular repeater, or what kind of link antenna, etc. If there are other repeaters or connections present, you can click on their name for further information.
In Service Degraded OOS

In ServiceSystem 5
Equipment:Motorola MSF5000 CXB
Transmit Power:15w
Antenna:Andrew DB-408 Dual 4-Bay with 7.8 dB of gain
In ServiceMain Link
Type:RF Link (connects to the Vaca Hub)
Equipment:Motorola CDM
Transmit Power:15w
Antenna:Antennex Y4066 Yagi with 10.2 dB of gain
In ServiceNode 1
Type:Wireline Node
Equipment:Node 1 Server
In ServiceSystem 35
Equipment:Motorola MSR2000
Transmit Power:40w
Antenna:Hustler G6 with 6 dB of gain
Click Here to see any current alerts for this system
In ServiceTopaz Extension
Type:Wireline Dedicated Network Extension
Equipment:Wireline DNE
